FRAME SPECIFICATIONS

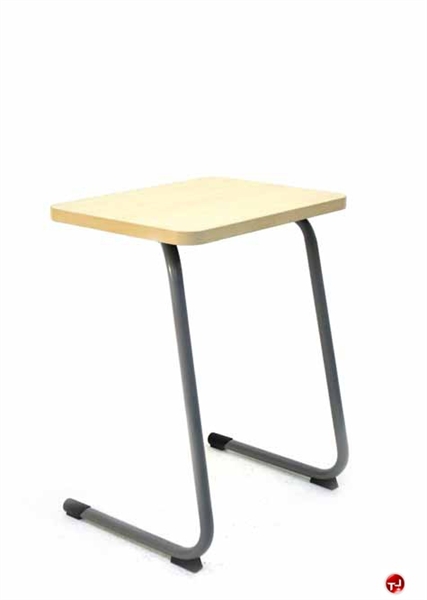

• 1.25” diameter one piece C–Frame design
• Weldless construction is 13 gauge steel tube with rotary bend
• Fixed frames available in three different heights
• Worksurface secured to brackets with #10 self tapping screws and steel straps
• Powder coat finished – Standard Charcoal Metallic
• Also available with wire book rack
• Height adjustable version available
GLIDE SPECIFICATIONS
• 1” x 2” nylon slide caps, riveted to tube
• Rear of frame equipped with anti-tilt saddle foot, riveted to tube
• Available with felt inserts
WORKSURFACE SPECIFICATIONS
• 1.125” table top thickness
• Standard core construction is 44lb. density particle board
• 2” radius corners standard, square edges available upon request
• 2mm vinyl edgeband applied with medium-viscosity, high-melt adhesive
• Greenguard certified High Pressure Laminate comes standard with our full
range of laminate options
